MK2 Visualizer

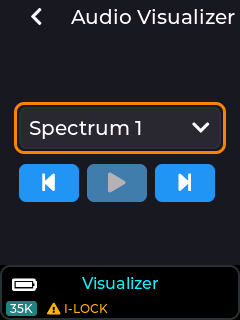

Audio Visualizer mode. There are currently 3 audio reactive visuals in the current (v0.14) release of the MK2 firmware. More visualizers will be added in future firmware updates.

The factory supplied SD card also includes MIDI mapping of these visualizers to the APC40 MK2 / APC mini MK2 grid buttons.

CubeOS has a number of built-in audio reactive visualizers:

These react to the Audio Input source configured in Settings -> Audio -> Audio Input, and can be either the built in microphone, or the 3.5mm stereo audio line input jack. The audio gain may also need to be adjusted based on the volume of the external audio.

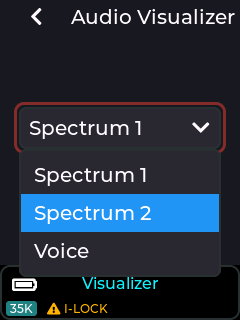

Spectrum1

Spectrum2

Voice

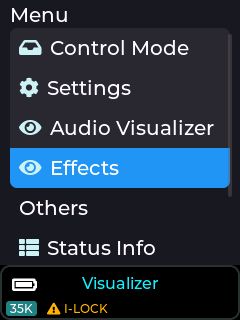

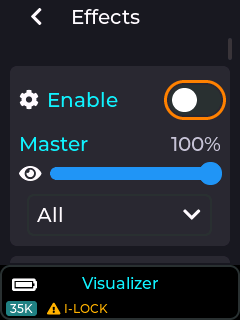

The Visualizers can also have effects added to them, configured from the Effects menu.

See the effects page of the wiki for more info on the built in effects, and also the tempo menu which will affect the speed of some BPM based effects.

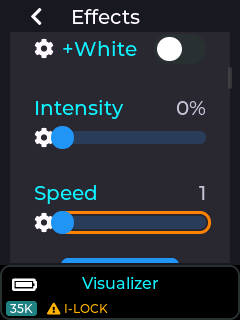

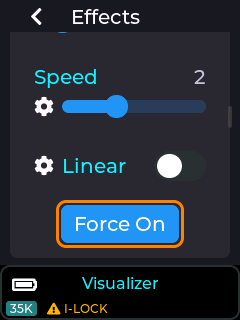

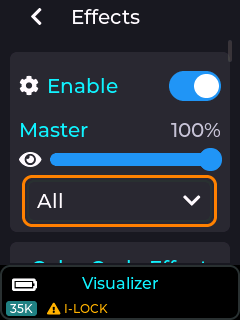

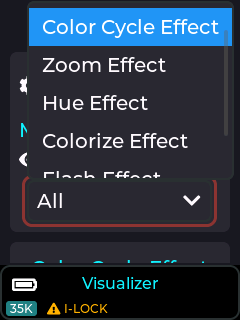

Filter UI for a single effect, or All effects

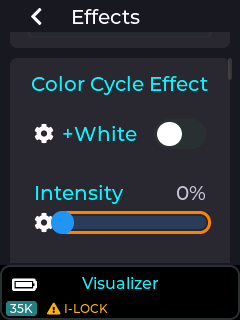

Color Cycle Effect

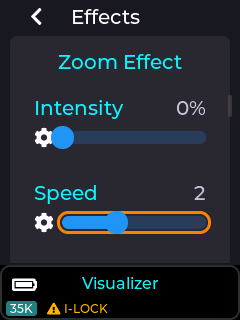

Zoom Effect

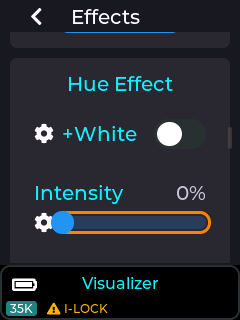

Hue Effect

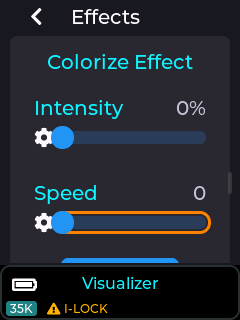

Colorize Effect

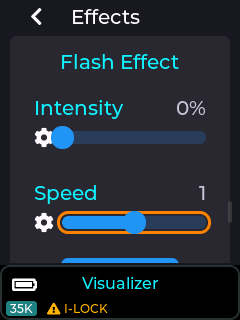

Flash Effect

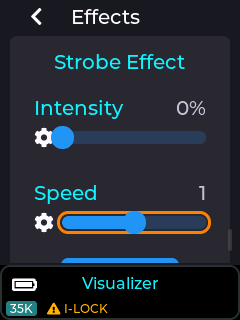

Strobe Effect
